Solutions：Industrial Testing
Origin：Japan
Karl Fischer Moisture Meter
CA-31
CA-31CA-31
⊙ Product performance characteristics
● Simple, fast, accurate Karl Fischer moisture measurement
● CONVERTIBLE! Both coulometric and volumetric in one unit (KF-31)
● Easy operation with color LCD touch screen
● Portable with optional battery and carrying case (CA-31)
● Vaporizers connectable (VA-200, VA-210, VA-230, VG-200)

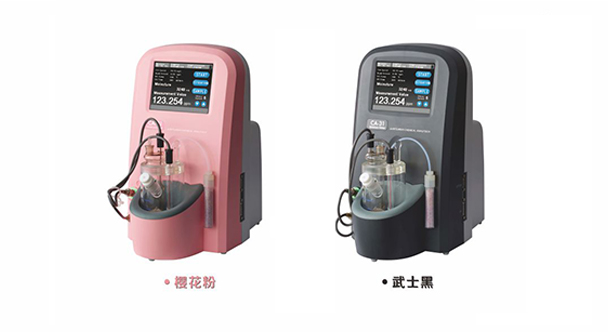

● Comes in 2 colors! Sakura Pink and Samurai Black.
⊙ Product technical parameters
| Method | Coulometric Karl Fischer Titration |
| Electrolysis Control | Constant Current Pulse Time Control |
| EndPoint Detection | Constant Current Polarization Potential Difference |
| Electrolysis Current | 430mA |
| Titration Rate | Average 2.2mg H2O/min (36μg H2O/sec) |
| Background | Automatic Correction, Constant Display Background level at start of measurement is displayed. |
| Measurement Range | 10μgto 999.9999mg H2O |
| Sensitivity | 0.1μｇH2O |
| Repeatability | <0.3%RSDat 1mg or more H2O (n=10) |
| StirringMethod | Magnetic Stirrer |
| Display | 5.7 inch Color LCD Touchpanel |
| Calculation | Concentration based on editable formula. Statisticalcalculation, recalculation |
| Printer | DotImpact Printer (Optional) |
| Vaporizers | VA－200, VA－210, VA－230, VG-200 (StepTemperature Control available on all Models) |
| External I/O | USB x 2: PC, Keyboard, Memory, Reagent Dispensing System RS232C x 2: Printer, Balance, Vaporizers |
| Temperature | 5to 40℃ |
| Humidity | <85% No Condensation |
| Power Supply | AC 100/120/220/240V (50/60Hz) 60VA |
| Dimensions | Main Unit (without cell and battery) Approx.220(W) x 350(D) x 360(H) mm |
| Weight | Main Unit Approx. 3.8kg (without cell and battery) Approx.6.6kg (with battery) |
